Who are we?
Xi’an Famens Electric Co., Ltd. is a high-tech enterprise specializing in the research, development, manufacturing, and sales of a wide range of sensor solutions. We are committed to delivering high-quality, reliable, and innovative sensor products to customers worldwide. Founded in 2015 and headquartered in Xi’an, China, our company is officially recognized as a high-tech enterprise in Xi’an, Shaanxi Province. We have established a comprehensive quality management and assurance system and have obtained ISO 9001 certification, ensuring product consistency and excellence.
Welcome to Xi’an Famous Electric Co., Ltd.
What problem can I help you solve?
We can provide you with professional elevator weighing and various electronic sensors, such as the popular sensors below.
Why Choose Us?
- Over 20 Years of Experience in elevator load measurement technology.

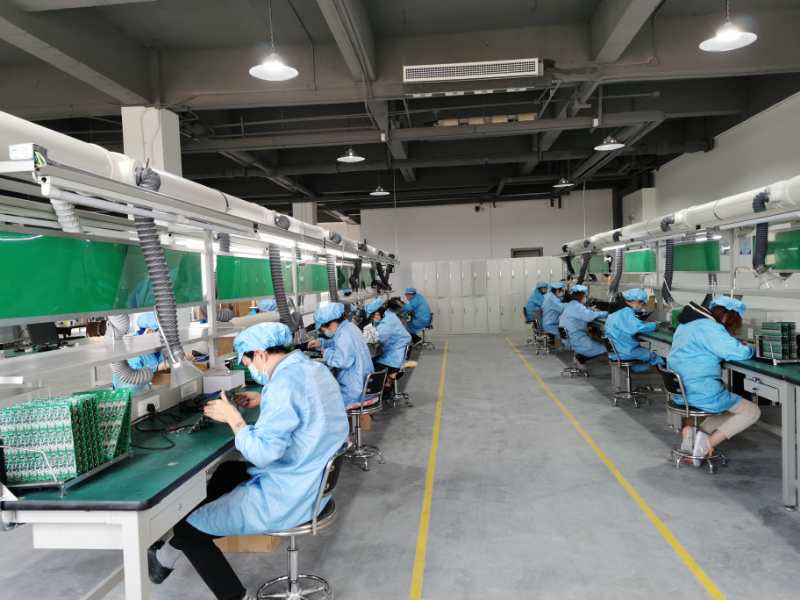

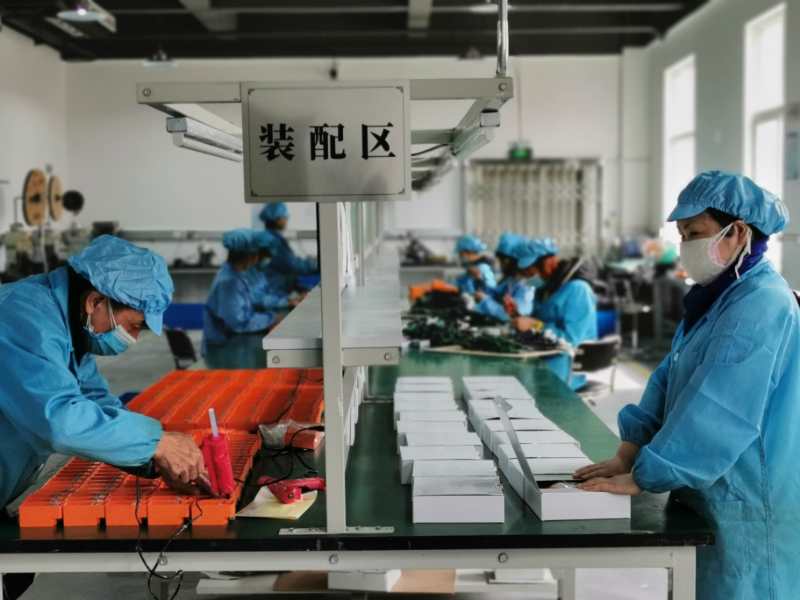

- In-house R&D and Manufacturing with strict quality control (ISO 9001 certified).
- Global Reach with trusted partnerships across continents.
- Expert Technical Support from a dedicated team of sensor engineers.
With more than 10 years of experience in product export, we serve our customers in the following areas:
New Products
We offer high-performance elevator load cells, overload protection devices, and customized control systems. All products meet CE & ISO standards.
This is our new product this year. It has been supported and recognized by consumers. We have already introduced it to 14 countries around the world.
Hot Products
The products shown here are the top 6 with the largest export volume
We offer high-performance elevator load cells, overload protection devices, and customized control systems. All products meet CE & ISO standards.
Anchor Force Sensor for Coal Mine Monitoring – XCL-YH-7550-400KN
Certifications
All products are EU and ISO certified
Sensor Model: XCL-YH-7550-400KN
Specifications
| Parameter | Specification |
|---|---|
| Measurement Range | 500kg ~ 5000kg (Customizable) |
| Accuracy | Class 0.5 per OIML R60 |
| Output Options | 4-20mA / 0-10V / RS485 / Ethernet/IP |
| Power Supply | 24VDC ±10% (18-36VDC Optional) |
| Sampling Rate | 1000Hz (Anti-Aliasing Filter Included) |
| Operating Temperature | -40°C to +85°C (Extended Range Available) |
| Ingress Protection | IP68/IP69K (NEMA 6P Equivalent) |
| Material | 17-4PH Stainless Steel w/ PEEK Coating |
| Calibration Cycle | 5 Years (NIST Traceable) |
Bistable Hall Effect Sensor for Magnetic Detection – IP67 Waterproof
Certifications
All products are EU and ISO certified
Sensor Model: BS-H-M12K-B
Technical Specifications
| Parameter | Specification |
|---|---|
| Detection Range | 8-15mm |
| Sensitivity | ± 0.5mm |
| Working Current | ≤ 20 mA |
| Ingress Protection | IP65 |
| Output Signal | Common Anode,Common Cathode |
| Power Supply | DC 24V（± 10%） |
| Place of Origin | China |
| Material | Metal and Plastic |
| Customization | Accept customization |
Capacitive Proximity Switch for Non-Contact Object Detection – IAS-C-M30P
Certifications
All products are EU and ISO certified
Sensor Model: IAS-C-M30P
Technical Specifications
| Parameter | Specification |
|---|---|
| Detection range | 0-15mm |
| Detectable body | Dielectric body |
| Working current | ≤15mA |
| Ingress Protection | IP65 |
| Signal output | PNP、NPN |
| Power Supply | DC 24V（±10%） |
| Place of Origin | China |
| Material | Metal and Plastic |
| Customization | Accept customization |
Color Mark Sensor for Precise Color Detection – IAS-CM-GN
Certifications
All products are EU and ISO certified
Sensor Model: IAS-CM-GN
Technical Specifications
| Parameter | Specification |
|---|---|
| Detection Distance | 10mm ± 2mm |
| Current Consumption | ≤ 45mA |
| Light Source Spectrum | Red, Green, Blue (optional) |
| Photoelectric Diameter | ψ0.5–ψ1.5 |
| Response Time | 0.1–1ms |
| Output Mode | Light-on, Dark-on selectable |
| Output Indicator | Red LED |
| Output Voltage | High level (≤ 1.5V), Low level (≤ 1.2V) |
| Power Supply | DC 10–30V (±10%) |
| Category | Color mark sensor |
| Material | Metal and Plastic |
| Customization | Accept customization |
Diffuse Reflective Photoelectric Switch Sensor for Reliable Object Detection – IAS-OS-M18DK
Certifications
All products are EU and ISO certified
Sensor Model: IAS-OS-M18DK
Technical Specifications
| Parameter | Specification |
|---|---|
| Response Time | 2ms |
| Load Current | 200mA |
| Operating Current | ≤15mA |
| Detected Object | Opaque Object |
| Protection Level | IP54 |
| Light Interference | Ambient Light Max: 10000Lx |
| Output Signal | NPN (Common Cathode), PNP (Common Anode) |
| Power Supply | DC 10–30V, AC 90–250V |
| Category | Photoelectric switch |
| Material | Metal and Plastic |
| Customization | Accept customization |
Fiber Optic Amplifier for Enhanced Signal Detection – IAS-O-ZD-N
Certifications
All products are EU and ISO certified
Sensor Model: IAS-O-ZD-N
Technical Specifications
| Parameter | Specification |
|---|---|
| Light Source | Red LED |
| Current Consumption | ≤ 40mA |
| Sensitivity Adjustment | Manual fine-tuning |
| Control Output | Open-collector output (NPN or PNP) |
| Anti-light Interference | Max ambient light: 10000Lx, Incandescent lamp: 3000Lx |
| Enclosure Protection Rating | IP50 |
| Place of Origin | China |
| Category | Fiber Amplifier |
| Customization | Accept customization |
