Series D of High-Precision Silicon Piezoresistive Pressure Sensor

Xi’an Famous Electric Co., Ltd.

Certifications

Series D of High-Precision Silicon Piezoresistive Pressure Sensor CE Series D of High-Precision Silicon Piezoresistive Pressure Sensor ISO9001

All products are EU and ISO certified

Series D of High-Precision Silicon Piezoresistive Pressure Sensor - XBP155

Sensor Model: XBP155

Series of Pressure Sensors

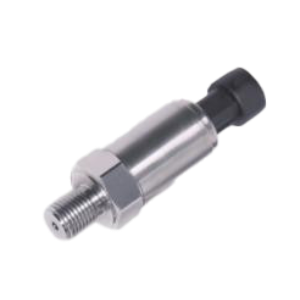

XBP155 — Pressure Transmitter

XBP155 Main
XBP155TC Detail XBP155TC Detail
Diaphragm Material316L
Measuring Range-100KPa~0-10KPa~35MPa
Power Supply5VDC/24VDC(12~32VDC)
Output0.5~4.5V, 4-20mA
AccuracyGrade 0.1, 0.25, 0.5
Temperature Drift<0.02%FS/°C
Compensation Temperature-20~80°C
Operating Temperature-40~120°C
Housing MaterialStainless Steel 304, 316L
Electrical ConnectionCustomizable

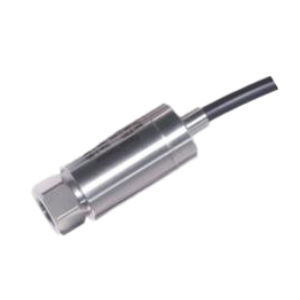

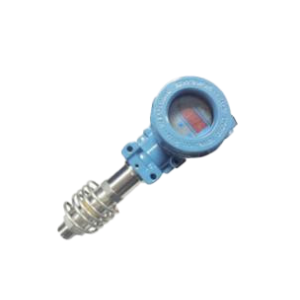

XBP156 — Pressure Transmitter

XBP156 Main
XBP155TC Detail XBP155TC Detail
Diaphragm Material316L
Measuring Range-100KPa~0-10KPa~35MPa
Power Supply5VDC/24VDC(12~32VDC)
Output0.5~4.5V, 4-20mA
AccuracyGrade 0.1, 0.25, 0.5
Temperature Drift<0.02%FS/°C
Compensation Temperature-20~80°C
Operating Temperature-40~120°C
Housing MaterialStainless Steel 304, 316L
Electrical ConnectionM12 Connector

XBP156 — Pressure Transmitter

XBP156 Main
XBP155TC Detail XBP155TC Detail
Diaphragm Material316L
Measuring Range-100KPa~0-10KPa~35MPa
Power Supply5VDC/24VDC(12~32VDC)
Output0.5~4.5V, 4-20mA
AccuracyGrade 0.1, 0.25, 0.5
Temperature Drift<0.02%FS/°C
Compensation Temperature-20~80°C
Operating Temperature-40~120°C
Housing MaterialStainless Steel 304, 316L
Electrical ConnectionDirect Wiring

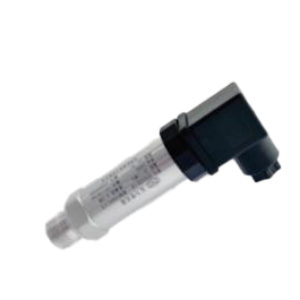

XBP93420-IB — Pressure Transmitter

XBP93420-IB Main
XBP155TC Detail XBP155TC Detail
Diaphragm Material316L
Measuring Range-100KPa~0-10KPa~100MPa
Power Supply5VDC/24VDC(12~32VDC)
Output0.5~4.5V, 4-20mA, etc.
AccuracyGrade 0.1, 0.25, 0.5
Temperature Drift<0.02%FS/°C
Compensation Temperature-20~80°C
Operating Temperature-40~120°C
Housing MaterialStainless Steel 304, 316L
Electrical ConnectionHarting

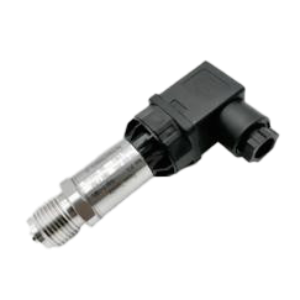

XBP170 — Pressure Transmitter

XBP170 Main
XBP155TC Detail XBP155TC Detail
Diaphragm Material316L
Measuring Range-100KPa~0-10KPa~100MPa
Power Supply5VDC/24VDC(12~32VDC)
Output0.5~4.5V, 4-20mA
AccuracyGrade 0.1, 0.25, 0.5
Temperature Drift<0.02%FS/°C
Compensation Temperature-20~80°C
Operating Temperature-40~120°C
Housing MaterialStainless Steel 304, 316L
Electrical ConnectionCustom Harting

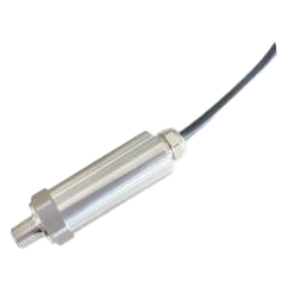

XBP93420-I — Pressure Transmitter

XBP93420-I Main
XBP155TC Detail XBP155TC Detail
Diaphragm Material316L
Measuring Range-100KPa~0-10KPa~100MPa
Power Supply5VDC/24VDC(12~32VDC)
Output0.5~4.5V, 4-20mA
AccuracyGrade 0.1, 0.25, 0.5
Temperature Drift<0.02%FS/°C
Compensation Temperature-20~80°C
Operating Temperature-40~120°C
Housing MaterialStainless Steel 304, 316L
Electrical ConnectionMetal PG7

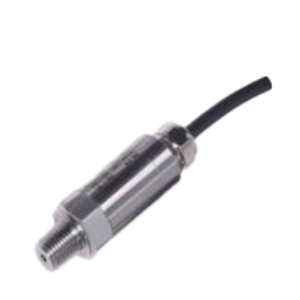

XBP156 — Pressure Transmitter

XBP156 Main
XBP155TC Detail XBP155TC Detail
Diaphragm Material316L
Measuring Range-100KPa~0-10KPa~35MPa
Power Supply5VDC/24VDC(12~32VDC)
Output0.5~4.5V, 4-20mA
AccuracyGrade 0.1, 0.25, 0.5
Temperature Drift<0.02%FS/°C
Compensation Temperature-20~80°C
Operating Temperature-40~120°C
Housing MaterialStainless Steel 304, 316L
Electrical ConnectionPG7 Wiring

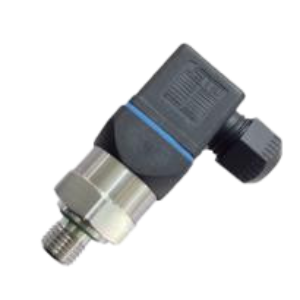

Pressure Transmitter — Pressure Transmitter

Pressure Transmitter Main
Pressure Transmitter Bundle View Pressure Transmitter Detail View
Measuring Range0~2bar~50bar
Power Supply24VDC(12~30VDC)
Output4-20mA, 0.5-4.5V, etc.
AccuracyGrade 0.5
Temperature Drift<0.02%FS/°C
Compensation Temperature-20~80°C
Operating Temperature-40~120°C
Housing MaterialStainless Steel 304, 316L
Electrical ConnectionCustom Harting

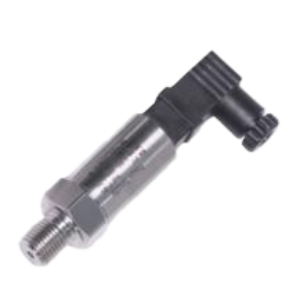

XBP157 — Pressure Transmitter

XBP157 Main
XBP155TC Detail XBP155TC Detail
Diaphragm Material316L
Measuring Range-100KPa~0-10KPa~35MPa
Power Supply5VDC/24VDC(12~32VDC)
Output0.5~4.5V, 4-20mA
AccuracyGrade 0.1, 0.25, 0.5
Temperature Drift<0.02%FS/°C
Compensation Temperature-20~80°C
Operating Temperature-40~120°C
Housing MaterialStainless Steel 304, 316L
Electrical ConnectionMini Harting

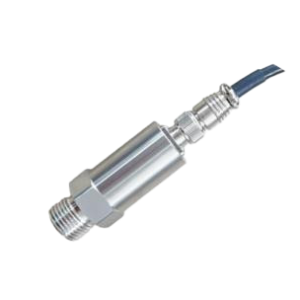

XBP93420-I — Pressure Transmitter

XBP93420-I Main
XBP155TC Detail XBP155TC Detail
Diaphragm Material316L
Measuring Range-100KPa~0-10MPa~100MPa
Power Supply5VDC/24VDC(12~32VDC)
Output0.5~4.5V, 4-20mA
AccuracyGrade 0.1, 0.25, 0.5
Temperature Drift<0.02%FS/°C
Compensation Temperature-20~80°C
Operating Temperature-40~120°C
Housing MaterialStainless Steel 304, 316L
Electrical ConnectionAviation Plug Wiring

Temperature and Pressure Transmitter — Temperature and Pressure Transmitter

Temperature and Pressure Transmitter Main
Temperature and Pressure Transmitter Bundle View Temperature and Pressure Transmitter Bundle View
Measuring Range-100KPa~0~60MPa, -40~125°C
Power Supply24VDC(12~32VDC)
OutputDual 4-20mA
AccuracyGrade 0.5
Temperature Drift<0.02%FS/°C
Compensation Temperature-20~80°C
Operating Temperature-40~120°C
Housing MaterialStainless Steel 304, 316L
Electrical ConnectionHarting or Custom

Description

The XBP155 welded silicon piezoresistive core sensor delivers high precision and stability for measuring liquid and gas pressures. It features a piezoresistive oil-filled element, durable metal and plastic housing, and is suitable for industrial, municipal, HVAC, aerospace, and petrochemical applications.

FAQ – Pressure Transmitter

✅ What is a high-precision diffused silicon pressure sensor?It is a piezoresistive pressure sensor core that uses diffused silicon technology to achieve high accuracy, excellent long-term stability, and wide measurement ranges.
✅ What pressure ranges are available?It supports a variety of ranges from low differential pressures (as low as 0~10kPa) up to high pressures (100MPa), covering most industrial applications.
✅ What is the construction and material?The sensor core adopts a stainless-steel oil-filled isolation diaphragm with full welding technology, ensuring strong overload resistance, long service life, and suitability for harsh environments.
✅ What applications are suitable?It is widely used in industrial automation, hydraulic and pneumatic systems, water treatment, HVAC, oil & gas pipelines, and process control.
✅ Does it include potting glue protection?Yes, potting glue is applied for enhanced vibration resistance, moisture protection, and improved long-term reliability.
✅ Is customization available?Yes, OEM/ODM customization is supported, including electrical connections, pressure ranges, output signals, mounting options, and private labeling.
✅ How can I purchase?You can contact our sales team for technical consultation, sample requests, or bulk OEM/ODM orders.
