Series E of High-Precision Silicon Piezoresistive Pressure Sensor

Xi’an Famous Electric Co., Ltd.

Certifications

Series E of High-Precision Silicon Piezoresistive Pressure Sensor CE Series E of High-Precision Silicon Piezoresistive Pressure Sensor ISO9001

All products are EU and ISO certified

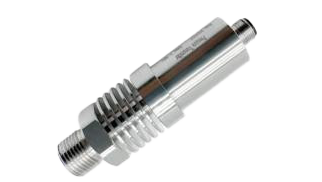

Series E of High-Precision Silicon Piezoresistive Pressure Sensor - XBP93420-IC

Sensor Model: XBP93420-IC

Series of Pressure Sensors

XBP93420-IC — Pressure Transmitter

XBP93420-IC Main
Bundle View Detail View
Diaphragm material316L
Range-100kPa~0~10kPa~100MPa
Power supply5VDC/24VDC(12-32VDC)
Output0.5~4.5V, 4~20mA
Accuracy0.1 class, 0.25 class, 0.5 class
Temperature drift≤0.02%F.S/℃
Compensation temperature-20~80℃
Operating temperature-40~150℃
Housing materialStainless steel 304, 316L
Electrical connectionHirschmann cable outlet, customizable

XBP93420-IC — Pressure Transmitter

XBP93420-IC Main
Bundle View Bundle View
Diaphragm material316L
Range-100kPa~0~10kPa~100MPa
Power supply5VDC/24VDC(12-32VDC)
Output0.5~4.5V, 4~20mA
Accuracy0.1 class, 0.25 class, 0.5 class
Temperature drift≤0.02%F.S/℃
Compensation temperature-20~80℃
Operating temperature-40~150℃
Housing materialStainless steel 304, 316L
Electrical connectionHirschmann cable outlet, customizable

XBP93420-IC— Pressure Transmitter

XBP93420-IC Main
Bundle View Detail View
Diaphragm material316L
Range-100kPa~0~10kPa~100MPa
Power supply5VDC/24VDC(12-32VDC)
Output0.5~4.5V, 4~20mA etc.
Accuracy0.1 class, 0.25 class, 0.5 class
Temperature drift≤0.02%F.S/℃
Compensation temperature-20~80℃
Operating temperature-40~150℃
Housing materialStainless steel 304, 316L
Electrical connectionM12 connector, customizable

XBP93420-Ⅲ — Pressure Transmitter

XBP93420-Ⅲ Main
Bundle View Detail View
Diaphragm material316L
Range-100kPa~0~10kPa~100MPa
Power supply24VDC(12-32VDC)
Output4-20mA, RS485, HART etc.
Accuracy0.1 class, 0.25 class, 0.5 class
Temperature drift≤0.02%F.S/℃
Compensation temperature-20~80℃
Operating temperature-40~120℃
Housing materialStainless steel 304 + aluminum alloy housing
Electrical connection2088 cable outlet, customizable

XBP93420-3051Ⅲ — Pressure Transmitter

XBP93420-3051Ⅲ Main
Bundle View Detail View
Diaphragm material316L
Range-100kPa~0~10kPa~100MPa
Power supply24VDC(12-32VDC)
Output4-20mA, RS485, HART etc.
Accuracy0.1 class, 0.25 class, 0.5 class
Temperature drift≤0.02%F.S/℃
Compensation temperature-20~80℃
Operating temperature-40~120℃
Housing materialStainless steel 304 + cast aluminum housing
Electrical connection3051 cable outlet

XBP93420-Ⅲ DN50 — Pressure Transmitter

XBP93420-Ⅲ DN50 Main
Bundle View Detail View
Diaphragm material316L with flange
Range-100kPa~0~10kPa~100MPa
Power supply24VDC(12-32VDC)
Output4-20mA, RS485, HART etc.
Accuracy0.1 class, 0.25 class, 0.5 class
Temperature drift≤0.02%F.S/℃
Compensation temperature-20~80℃
Operating temperature-40~120℃
Housing material2088, 3051 cable outlet
Electrical connectionCustomizable

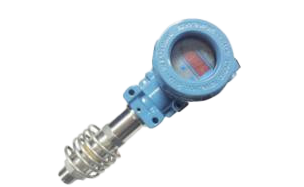

XBP156 — Pressure Transmitter

XBP156 Main
Bundle View Detail View
Diaphragm material316L
Range-100kPa~0~10kPa~10MPa
Power supply24VDC(12-32VDC)
Output4-20mA, RS485, HART etc.
Accuracy0.1 class, 0.25 class, 0.5 class
Temperature drift≤0.02%F.S/℃
Compensation temperature-20~80℃
Operating temperature-40~150℃
Housing materialStainless steel 304 + cast aluminum housing
Electrical connection2088 cable outlet, customizable

XBP93420-ⅢIQT — Pressure Transmitter

XBP93420-ⅢIQT Main
Bundle View Detail View
Range0~30MPa~3.5MPa
Power supply24VDC(12-32VDC)
Output4-20mA, Hart, RS485 etc.
Accuracy0.5 class
Temperature drift≤0.02%F.S/℃
Compensation temperature-30~80℃
Operating temperature-40~150℃
Housing materialStainless steel 304 + cast aluminum housing
Electrical connectionCustomizable

XBP93420-ⅡIA — Pressure Transmitter

XBP93420-ⅡIA Main
Bundle View Detail View
Diaphragm material316L
Range-100kPa~0~10kPa~100MPa
Power supply24VDC(12-32VDC)
Output4-20mA etc.
Accuracy0.1 class, 0.25 class, 0.5 class
Temperature drift≤0.02%F.S/℃
Compensation temperature-20~80℃
Operating temperature-40~120℃
Housing materialStainless steel 304 + cast aluminum housing
Electrical connection3051S cable outlet, customizable

XBP93420-ⅡIA — Pressure Transmitter

XBP93420-ⅡIA Main
Bundle View Bundle View
Diaphragm material316L
Range-100kPa~0~10kPa~100MPa
Power supply24VDC(12-32VDC)
Output4-20mA etc.
Accuracy0.1 class, 0.25 class, 0.5 class
Temperature drift≤0.02%F.S/℃
Compensation temperature-20~80℃
Operating temperature-40~120℃
Housing materialStainless steel 304 + cast aluminum housing
Electrical connectionMilitary green 2088, customizable

XBP93420-IX — Pressure Transmitter

XBP93420-IX Main
Bundle View Detail View
Diaphragm material316L
Range-100kPa~0~10kPa~100MPa
Power supply24VDC(12-32VDC)
Output4-20mA etc.
Accuracy0.1 class, 0.25 class, 0.5 class
Temperature drift≤0.02%F.S/℃
Compensation temperature-20~80℃
Operating temperature-40~120℃
Housing materialStainless steel 304 + plastic gauge head
Electrical connectionHirschmann, customizable

Description

The XBP93420-IC welded silicon piezoresistive core sensor delivers high precision and stability for measuring liquid and gas pressures. It features a piezoresistive oil-filled element, durable metal and plastic housing, and is suitable for industrial, municipal, HVAC, aerospace, and petrochemical applications.

FAQ – Pressure Transmitter CYYZ131-100

✅ What is the measuring range and accuracy of the CYYZ131-100 pressure transmitter?The CYYZ131-100 measures pressures from 0 to 100 MPa with an accuracy of ±0.5% FS, suitable for industrial fluid and gas monitoring.
✅ What output signals does the CYYZ131-100 support?It supports 4–20mA, 0–5V, 0–10V, RS485, and wireless communication options, compatible with HART protocol.
✅ How does the CYYZ131-100 handle harsh environments?The transmitter features IP68-rated stainless steel housing, operates from -40°C to +125°C, and offers 100g shock resistance. Explosion-proof variants are also available.
✅ What connectivity options are available?Selectable 4–20mA, 0–10V, RS485/Modbus, wireless (LoRaWAN/NB-IoT), with HART protocol support.
✅ What industries and applications is it suitable for?Applicable in Oil & Gas, Water Management, HVAC & Refrigeration, Automotive Testing, Medical & Pharmaceutical, and Renewable Energy systems for precise pressure monitoring.
