Series F of High-Precision Silicon Piezoresistive Pressure Sensor - XBPHT24

Sensor Model: XBPHT24

Series of Pressure Sensors

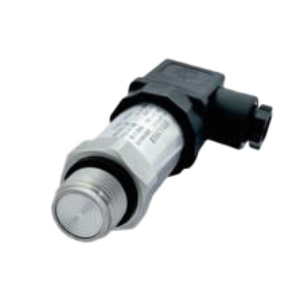

XBPHT24 — Flat diaphragm pressure transmitter

XBPHT24 Main
Bundle View Detail View
Core diaphragm316L
Measuring range-100KPa~0~10KPa~35MPa
Power supply5VDC/24VDC(12-32VDC)
Output0.5-4.5V, 4-20mA, RS485, HART etc.
Accuracy0.1 level, 0.25 level, 0.5 level
Temperature drift≤0.02%F.S/°C
Compensation temperature-20~80℃
Operating temperature-40~120℃
ThreadG1/2, M20*1.5, 1/2NPT
Electrical connectionHarting, Customizable

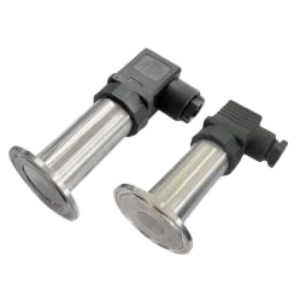

XBP93420-IQ — Flat diaphragm pressure transmitter

XBP93420-IQ Main
Bundle View Detail View
Core diaphragm316L
Measuring range0-35KPa~120MPa
Power supply5VDC/24VDC(12-32VDC)
Output0.5-4.5V, 4-20mA, RS485, HART etc.
Accuracy0.1 level, 0.25 level, 0.5 level
Temperature drift≤0.02%F.S/°C
Compensation temperature-20~80℃
Operating temperature-40~120℃
Thread50.4mm clamp
Electrical connectionHarting, Customizable

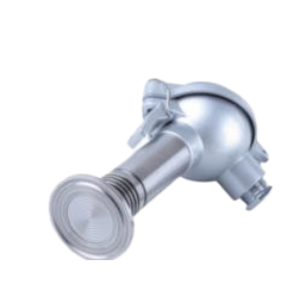

XBP93420-IQT — Flat diaphragm pressure transmitter

XBP93420-IQT Main
Bundle View Bundle View
Core diaphragm316L
Measuring range-100KPa~0~10KPa~3.5MPa
Power supply5VDC/24VDC(12-32VDC)
Output0.5-4.5V, 4-20mA, RS485, HART etc.
Accuracy0.1 level, 0.25 level, 0.5 level
Temperature drift≤0.02%F.S/°C
Compensation temperature-20~80℃
Operating temperature-40~120℃
Thread50.4mm clamp with heat dissipation
Electrical connectionHarting, Customizable

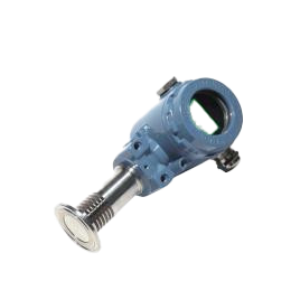

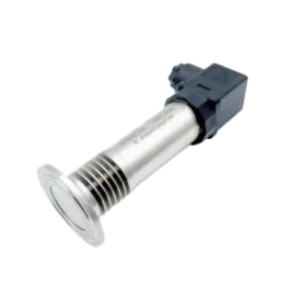

XBP93420-IQT — Flat diaphragm pressure transmitter

XBP93420-IQT Main
Bundle View Detail View
Core diaphragm316L
Measuring range-100KPa~0~10KPa~3.5MPa
Power supply24VDC(12-32VDC)
Output4-20mA, HART, RS485 etc.
Accuracy0.1 level, 0.25 level, 0.5 level
Temperature drift≤0.02%F.S/°C
Compensation temperature-20~80℃
Operating temperature-40~120℃
Thread50.4mm clamp with heat dissipation, snap-on terminal box
Electrical connectionCustomizable

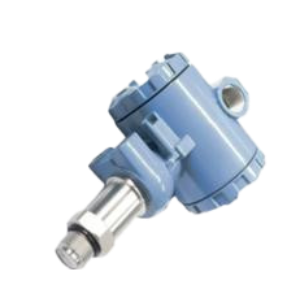

XBPHT24-III — Flat diaphragm pressure transmitter

XBPHT24-III Main
Bundle View Detail View
Core diaphragm316L
Measuring range-100KPa~0~10KPa~35MPa
Power supply24VDC(12-32VDC)
Output4-20mA, RS485, HART etc.
Accuracy0.1 level, 0.25 level, 0.5 level
Temperature drift≤0.02%F.S/°C
Compensation temperature-20~80℃
Operating temperature-40~120℃
ThreadM20*1.5, G1/2, 1/2NPT
Electrical connection2088

XBP93420-IIQT — Pressure transmitter

XBP93420-IIQT Main
Bundle View Detail View
Measuring range0~30KPa~3.5MPa
Power supply24VDC(12-32VDC)
Output4-20mA, HART, RS485 etc.
Accuracy0.5 level
Temperature drift≤0.02%F.S/°C
Operating temperature-30~80℃
InterfaceΦ50.4mm with heat dissipation
Electrical connectionWith display

XBH93420-I — Liquid level transmitter

XBH93420-I Main
XBH93420-I Sub 1 XBH93420-I Sub 2
Diaphragm film316L
Measuring range0-1m~1000m
Power supply5VDC/24VDC(12-32VDC)
Output0.5-4.5V, 4-20mA, RS485, HART etc.
Accuracy0.1级, 0.25级, 0.5级
Temperature drift≤0.02%F.S/℃
Compensation temperature-20~80℃
Operating temperature-40~120℃
IP ratingIP68
CablePE, PU, PTFE
MediumWater, gas measurement

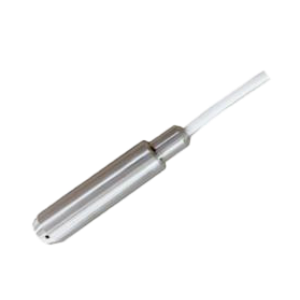

XBH93420-I — Oil-resistant liquid level transmitter

XBH93420-I Main
XBH93420-I Sub 1 XBH93420-I Sub 2
Diaphragm film316L
Measuring range0-1m~1000m
Power supply5VDC/24VDC(12-32VDC)
Output0.5-4.5V, 4-20mA, RS485, HART etc.
Accuracy0.1级, 0.25级, 0.5级
Temperature drift≤0.02%F.S/℃
Compensation temperature-20~80℃
Operating temperature-40~120℃
IP ratingIP68
CablePE, PU, PTFE
MediumWater, gas measurement

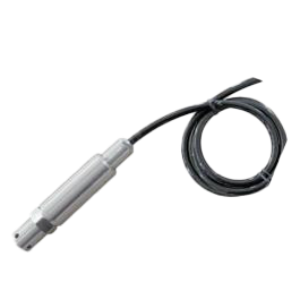

XBH93420-I — All-welded liquid level transmitter

XBH93420-I Main
XBH93420-I Sub 1 XBH93420-I Sub 2
Diaphragm film316L
Measuring range0-1m~400m
Power supply5VDC/24VDC(12-32VDC)
Output0.5-4.5V, 4-20mA, RS485, HART etc.
Accuracy0.1级, 0.25级, 0.5级
Temperature drift≤0.02%F.S/℃
Compensation temperature-20~80℃
Operating temperature-40~120℃
IP ratingIP68
CablePE, PU, PTFE
MediumMedia with strong permeability such as gasoline

XBH93420-III — Liquid level transmitter

XBH93420-III Main
XBH93420-III Sub 1 XBH93420-III Sub 2
Diaphragm film316L
Measuring range0-1m~400m
Power supply24VDC(12-32VDC)
Output4-20mA, RS485, HART etc.
Accuracy0.1级, 0.25级, 0.5级
Temperature drift≤0.02%F.S/℃
Compensation temperature-20~80℃
Operating temperature-40~120℃
IP ratingIP68
CablePE, PU, PTFE
MediumWater, gas measurement
Electrical connection2088 blue shell

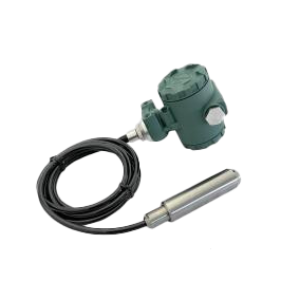

XBH93420-II — Liquid level transmitter

XBH93420-II Main
XBH93420-II Sub 1 XBH93420-II Sub 2
Diaphragm film316L
Measuring range0-1m~400m
Power supply24VDC(12-32VDC)
Output4-20mA, RS485, HART etc.
Accuracy0.1级, 0.25级, 0.5级
Temperature drift≤0.02%F.S/℃
Compensation temperature-20~80℃
Operating temperature-40~120℃
IP ratingIP68
CablePE, PU, PTFE
MediumWater, gas, oil
Electrical connection2088 green shell

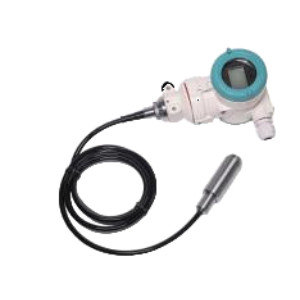

XBH93420-III — Liquid level transmitter

XBH93420-III Main
XBH93420-III Sub 1 XBH93420-III Sub 2
Diaphragm film316L
Measuring range0-1m~400m
Power supply24VDC(12-32VDC)
Output4-20mA, RS485, HART etc.
Accuracy0.1级, 0.25级, 0.5级
Temperature drift≤0.02%F.S/℃
Compensation temperature-20~80℃
Operating temperature-40~120℃
IP ratingIP68
CablePE, PU, PTFE
MediumWater, gas, oil
Electrical connection3051A

Description

The FMS30 welded silicon piezoresistive core sensor delivers high precision and stability for measuring liquid and gas pressures. It features a piezoresistive oil-filled element, durable metal and plastic housing, and is suitable for industrial, municipal, HVAC, aerospace, and petrochemical applications.
