Analog Hall Effect Sensor for Linear Magnetic Field Detection
Xi’an Famous Electric Co., Ltd.
Certifications
All products are EU and ISO certified
Sensor Model: IAS-H-M30SV05
Technical Specifications
| Parameter | Specification |
|---|---|
| Detection range | 0-12.5mm |
| Sensitivity | ≤ 1 % |
| Working current | ≤ 35 mA |
| Ingress Protection | IP65 |
| Signal output | 0-5 V，5-0 V，0-10 V，10-0 V，RS485，CAN |
| Power Supply | DC 24V（± 10%） |
| Place of Origin | China |
| Material | Metal and Plastic |
| Customization | Accept customization |
Pictures

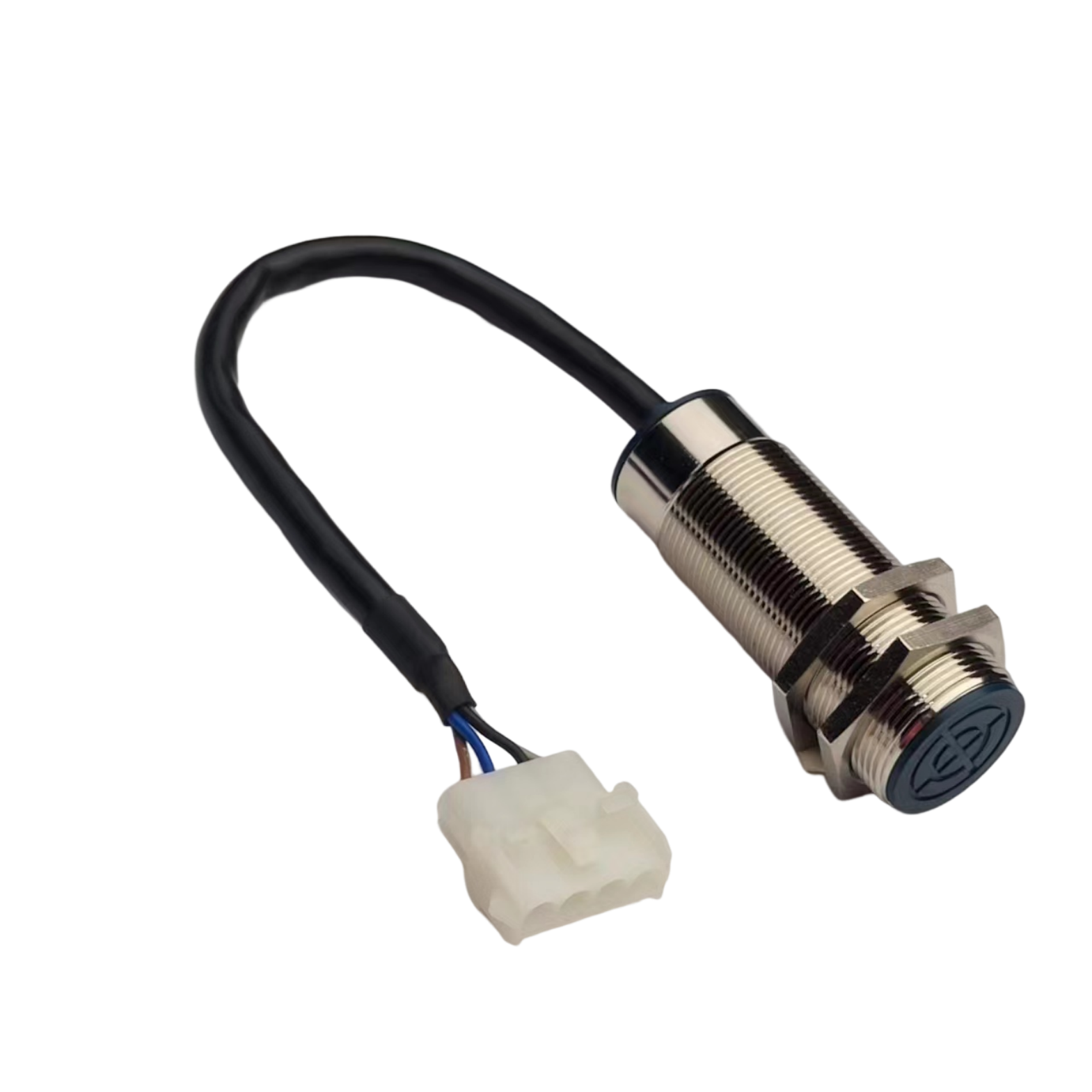

Sensor Picture:IAS-H-M30SV05
Key Features
✅ High-Precision Linear Output
Advanced Hall element with signal conditioning circuitry ensures 0.5%-1% FS linearity for repeatable, accurate measurements.
✅ Extended Operational Range
Operates in extreme temperatures (-40°C to +150°C) with IP67-rated protection against dust, moisture, and oil contamination.
✅ EMC Protection & Low Power
Built-in EMI/RFI suppression circuits with ≤5mA standby current consumption for energy-efficient systems.
✅ Versatile Output Options
Selectable 0-5V, 0-10V, or 4-20mA outputs compatible with PLCs, DCS, and data acquisition systems.
✅ Maintenance-Free Design
Non-contact operation ensures >100,000-hour service life with zero mechanical wear.
Application Scenarios
🟡 . Industrial Automation
- Robotic arm positioning
- Conveyor speed monitoring
- Valve displacement detection
🟡 . Automotive Systems
- Throttle/brake pedal position sensing
- Motor current monitoring
- Transmission status feedback
🟡 . Energy & Power
- BMS current measurement
- Solar tracker angle adjustment
🟡 . Smart Devices
- Smart home motor control
- Medical equipment motion detection
Your Concerns
Delivery
- ✅ Standard Products: 5-7 working days
- ✅ Customized Solutions : 15-20 working days
- ✅ Expedited Service: 3-day
Transportation
- Sea freight
- Air freight
- China-Europe express
Payment
- Western Union
- L/C at Sight
- PayPal
Quality
- 100% Pre-shipment Inspection
- Marine Insurance
- Anti-Static/Shock-Proof Packaging
Documents
Install Video
Description
The IAS-H-M30SV05 is an analog Hall effect sensor designed for accurate linear magnetic field detection. Offering high sensitivity and stable output, it's ideal for position sensing, displacement measurement, and non-contact control systems in industrial automation applications.Contact & Support
Contact Our Engineers
📞 +86-29-8876-5500 | +86 18092239472 | +86 18192259863
📧 fmssales3@xafms.com | estxs03@xaest.com
📍 Address：Xi 'an Gaoling District Ronghao Industrial City China V3-03
