Cantilever Beam Load Cell for Weighing Applications – XCL-YB-4

---

Technical Specifications

Pictures

---

Key Features

✅ High-Accuracy Measurement
0.05% FS precision with 10g-5t capacity range, featuring temperature-compensated strain gauges for ±0.003%/°C stability.

✅ Compact Robust Design
One-piece alloy steel construction with IP68 rating, resistant to side loads and torsional forces (EN 12645 compliant).

✅ Multi-Mounting Flexibility
Threaded/unthreaded loading options with M8-M30 installation variants for space-constrained applications.

✅ Advanced Signal Conditioning
Built-in 24-bit ADC with analog (2mV/V) and digital (RS485/IO-Link) outputs for real-time data streaming.

✅ Overload Protection
200% safe overload capacity and 500% ultimate overload protection with automatic zero recovery.

✅ Smart Diagnostics
Strain gauge integrity monitoring and drift alerts via Modbus RTU protocol for predictive maintenance.

---

Application Scenarios

🟡 Industrial Weighing Systems

• Production line component counting scales
• Powder silo inventory management
• Conveyor belt checkweigher integration

🟡 Food & Beverage Processing

• Recipe formulation ingredient dosing
• Packaging machine fill weight control
• Meat slicer portion weight verification

🟡 Medical Equipment

• Dialysis machine fluid balance monitoring
• Pharmaceutical tablet press force feedback
• Rehabilitation equipment strength testing

🟡 Automotive Testing

• EV battery module compression force test
• Tire valve stem assembly torque measurement
• Seatbelt anchorage load cycle testing

🟡 Smart Logistics

• AGV payload capacity verification
• Automated parcel sorting weight classification
• Warehouse rack structural load monitoring

🟡 Renewable Energy

• Solar panel frame assembly stress testing
• Wind turbine gearbox bolt preload control
• Biomass pellet feeder calibration systems

🟡 Aerospace Manufacturing

• Satellite fuel valve actuation force test
• Aircraft seat track installation verification
• Rocket nozzle gasket seating force control

🟡 Precision Agriculture

• Fertilizer spreader rate calibration
• Livestock feed mixer batch control
• Grain moisture analyzer sample weighing

---

Your Concerns

Documents

Install Video

Description

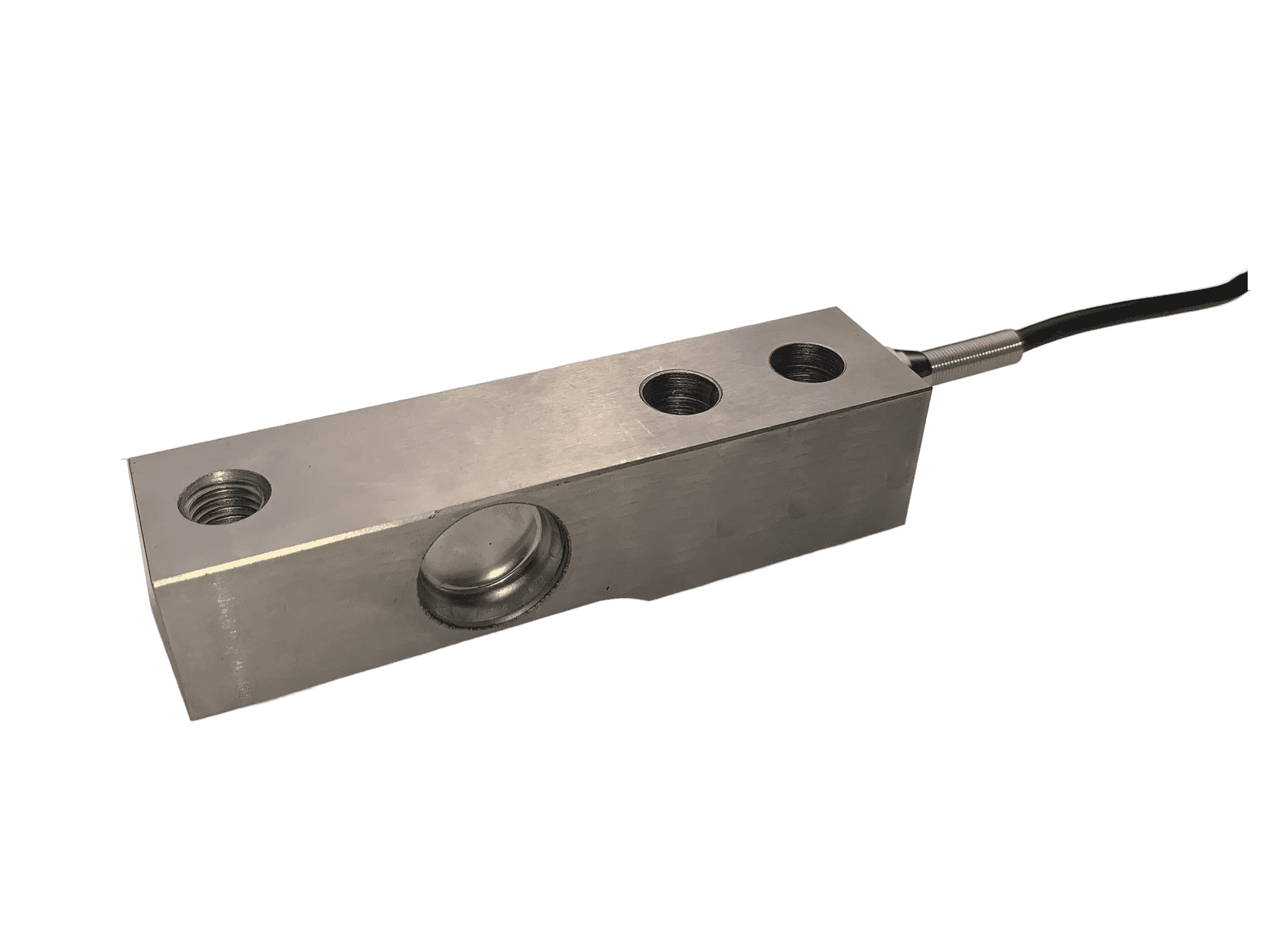

The XCL-YB-4 is a cantilever beam load cell designed for high-precision weighing applications such as platform scales, hopper scales, and industrial measurement systems. It offers excellent linearity, repeatability, and long-term stability.

---

FAQ – Cantilever Beam Load Cell XCL-YB-4

✅ What is the measuring range and accuracy of the Cantilever Beam Load Cell XCL-YB-4?

The XCL-YB-4 offers a measuring range of 1–100kN with 0.05% FS precision, ensuring high accuracy and stability for industrial weighing applications such as platform scales, hopper scales, and conveyor belt systems.

✅ Is the XCL-YB-4 Cantilever Beam Load Cell CE and ISO certified?

Yes, the XCL-YB-4 is CE and ISO9001 certified, meeting international safety and quality standards for industrial, medical, and commercial weighing applications.

✅ Can the XCL-YB-4 Cantilever Beam Load Cell be customized?

Yes, customization is available, including measuring range, mounting options (threaded/unthreaded), and signal outputs (analog 2mV/V or digital RS485/IO-Link) to fit specific project needs.

✅ What are the typical applications of the XCL-YB-4 Cantilever Beam Load Cell?

The XCL-YB-4 is widely used in platform scales, hopper weighing, food & beverage dosing, medical equipment fluid monitoring, automotive testing, renewable energy assembly, aerospace manufacturing, and precision agriculture.

✅ How does the Cantilever Beam Load Cell XCL-YB-4 ensure durability in harsh environments?

The XCL-YB-4 features an IP66–IP68 rated alloy steel design, resists side loads and torsional forces, provides up to 500% overload protection, and includes smart diagnostics with predictive maintenance alerts.
