Hall Effect Switch Sensor for Magnetic Detection – IAS-H-M24JK

---

Technical Specifications

Pictures

---

Key Features

✅ Ultra-Fast Switching
<10μs response time with TTL/CMOS-compatible output (NPN/PNP selectable) for real-time position detection in high-speed systems.

✅ Zero Contact Wear
Magnetic field-based non-contact sensing ensures 50 million+ operation cycles, ideal for repetitive motion applications.

✅ Extreme Environment Resilience
IP69K-rated housing withstands -40°C to +150°C operation, steam cleaning, and 100g vibration resistance (IEC 60068-2-6 certified).

✅ Intelligent Diagnostics
Built-in fault detection for wire breaks/short circuits with dual-color LED status indication (green/red).

✅ Versatile Configuration
NO/NC output options, 5-30V DC wide voltage input (±15V surge protection), and M5/M8/M12 mounting variants.

✅ EMC Robustness
Complies with IEC 61000-4 industrial EMC standards, immune to 30V/m RF interference.

---

Application Scenarios

🟡 . Factory Automation

• Robotic end-effector grip confirmation
• CNC machine tool position interlocks
• Packaging line bottle cap presence detection

🟡 . Transportation Systems

• Train door closure verification
• EV battery disconnect switch status
• Forklift lift height limit switching

🟡 . Energy Infrastructure

• Wind turbine blade pitch position feedback
• Solar tracker angular limit protection
• Hydraulic valve position confirmation

🟡 . Consumer Electronics

• Washing machine drum rotation sensing
• Smart furniture position safety cutoff
• Camera lens retraction end-stop detection

🟡 . Heavy Machinery

• Excavator boom angle limit control
• Crane hook height emergency stop
• Agricultural implement depth sensing

🟡 . Medical Devices

• MRI system door interlock switches
• Hospital bed position memory triggers
• Surgical robot joint angle limits

---

Your Concerns

Documents

Install Video

Description

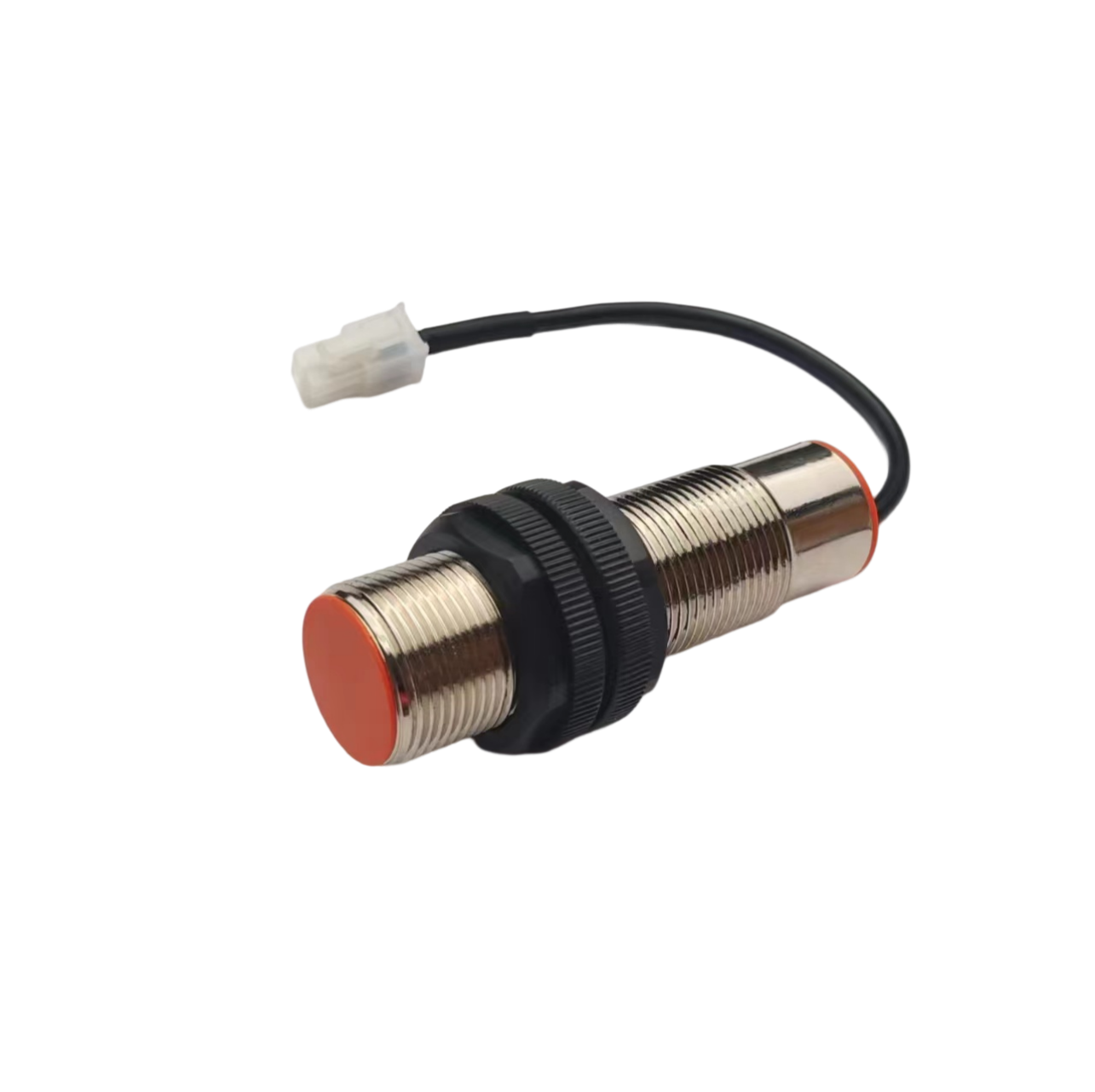

The IAS-H-M24JK is a Hall effect switch sensor designed for magnetic field detection and non-contact position sensing. It features reliable switching performance, compact design, and IP67 protection, making it ideal for automation systems, smart machinery, and industrial equipment.

---

FAQ – IAS-H-M24JK Hall Effect Switch Sensor, Magnetic Detection, Non-Contact Position Sensing

✅ What is the detection range of the IAS-H-M24JK Hall effect switch sensor?

The IAS-H-M24JK features a detection range of 0–15mm with high sensitivity (±0.05mm), ideal for precise magnetic detection and non-contact position sensing in industrial automation and smart machinery.

✅ How does the IAS-H-M24JK Hall effect sensor ensure non-contact switching?

It uses magnetic field-based Hall effect sensing, eliminating mechanical contact and wear. This allows over 50 million operation cycles, making it perfect for high-speed repetitive motion applications.

✅ What is the ingress protection and environmental rating of the IAS-H-M24JK?

The sensor has IP65/IP69K-rated housing, operates from -40°C to +150°C, and resists steam cleaning, 100g vibrations, and industrial EMC interference, ensuring durability in harsh industrial environments.

✅ Which output signals and voltages does the IAS-H-M24JK support?

The sensor provides NPN/PNP outputs with NO/NC configuration, and supports 5–30V DC input with ±15V surge protection, ensuring compatibility with PLCs, industrial control systems, and automation equipment.

✅ What are the typical applications for the IAS-H-M24JK Hall effect switch sensor?

Common applications include factory automation (robotic end-effector detection, CNC interlocks), transportation systems (train door sensors, EV battery disconnect), energy infrastructure (wind turbine blade monitoring), consumer electronics, heavy machinery, and medical devices.
