Bistable Hall Effect Sensor for Magnetic Detection – IP67 Waterproof
Xi’an Famous Electric Co., Ltd.
Certifications
All products are EU and ISO certified
Sensor Model: BS-H-M12K-B
Technical Specifications
| Parameter | Specification |
|---|---|
| Detection Range | 8-15mm |
| Sensitivity | ± 0.5mm |
| Working Current | ≤ 20 mA |
| Ingress Protection | IP65 |
| Output Signal | Common Anode,Common Cathode |
| Power Supply | DC 24V（± 10%） |
| Place of Origin | China |
| Material | Metal and Plastic |
| Customization | Accept customization |
Pictures

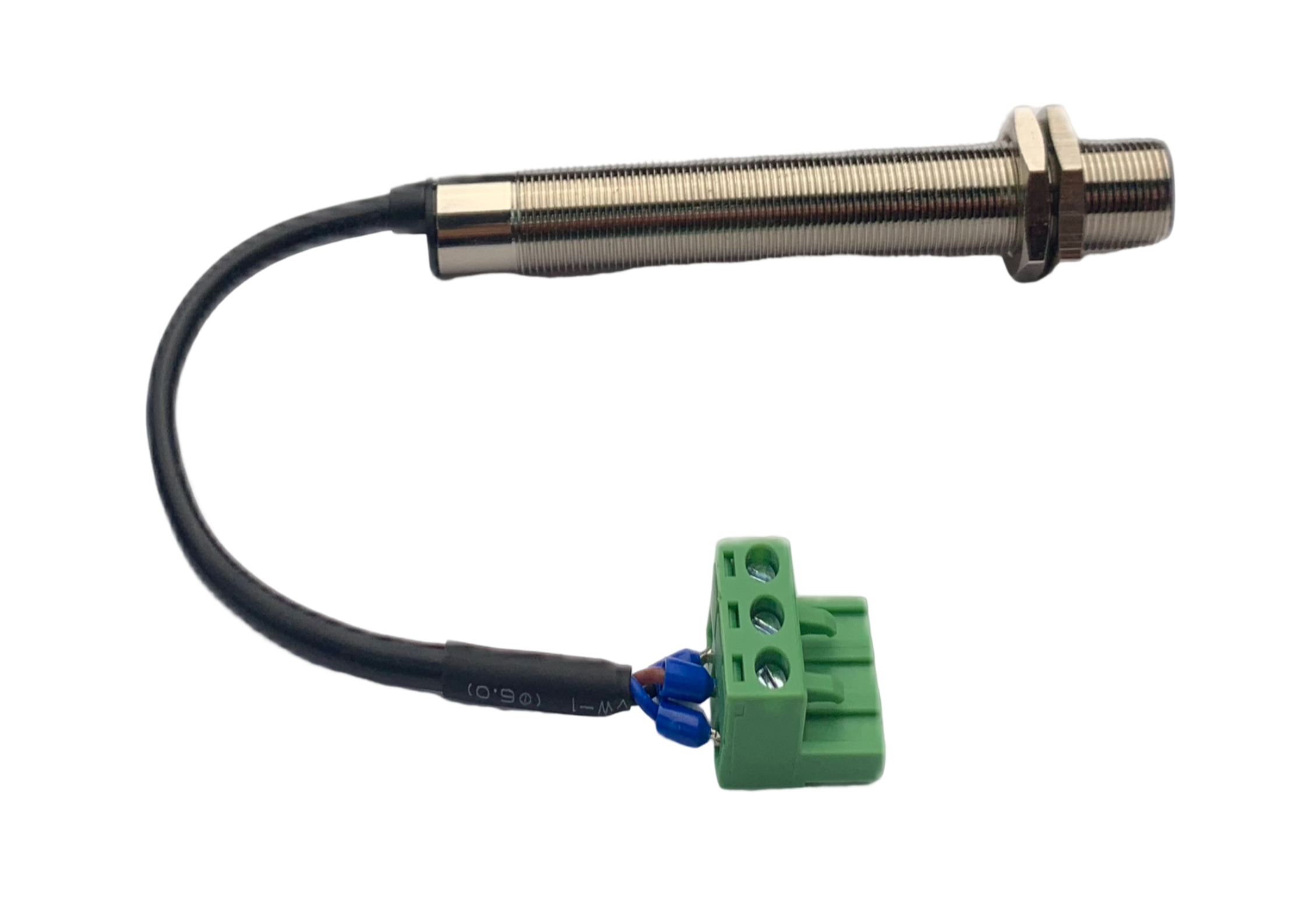

Sensor Picture:BS-H-M12K-B
Key Features
✅ Digital On/Off Output
Instant TTL/CMOS compatible switching (NPN/PNP, NO/NC configurable) with <1μs response time for real-time status detection.
✅ Contactless Operation
Hall-effect based non-contact detection eliminates mechanical wear, ensuring >10 million operation cycles.
✅ Wide Voltage Compatibility
5-30V DC operating range with reverse polarity protection (±15V surge withstand).
✅ Extreme Environment Resilience
-40°C to +125°C operation with IP69K-rated housing for steam wash/dusty environments.
✅ Smart Diagnostics
Built-in fault detection for short-circuit/open-circuit conditions (LED status indicator).
✅ Versatile Mounting
M8/M12 threaded barrels or flat-surface SMD packages for flexible integration.
Application Scenarios
🟡 . Position Sensing
- CNC machine tool limit switches
- Elevator door position sensing
- Agricultural equipment boom height detection
🟡 . Speed/RPM Monitoring
- Conveyor belt overspeed protection
- BLDC motor commutation feedback
- Bicycle/EV motor RPM measurement
🟡 . Safety & Security
- Machinery guard interlock switches
- Smart locker magnetic tamper detection
- Automotive seatbelt engagement sensing
🟡 . Fluid Systems
- Hydraulic cylinder end-position detection
- Water pump diaphragm rupture alert
- HVAC damper position verification
🟡 . Consumer Devices
- Refrigerator door open/close detection
- Smartphone flip cover wake-up trigger
- Treadmill emergency stop activation
Your Concerns
Delivery
- ✅ Standard Products: 5-7 working days
- ✅ Customized Solutions : 15-20 working days
- ✅ Expedited Service: 3-day
Transportation
- Sea freight
- Air freight
- China-Europe express
Payment
- Western Union
- L/C at Sight
- PayPal
Quality
- 100% Pre-shipment Inspection
- Marine Insurance
- Anti-Static/Shock-Proof Packaging
Documents
Install Video
Description
The BS-H-M12K-B is a bistable Hall effect sensor designed for magnetic detection in industrial environments. Featuring IP67 waterproof protection and CE certification, it's ideal for automation and smart equipment.Contact & Support
Contact Our Engineers
📞 +86-29-8876-5500 | +86 18092239472 | +86 18192259863
📧 fmssales3@xafms.com | estxs03@xaest.com
📍 Address：Xi 'an Gaoling District Ronghao Industrial City China V3-03
