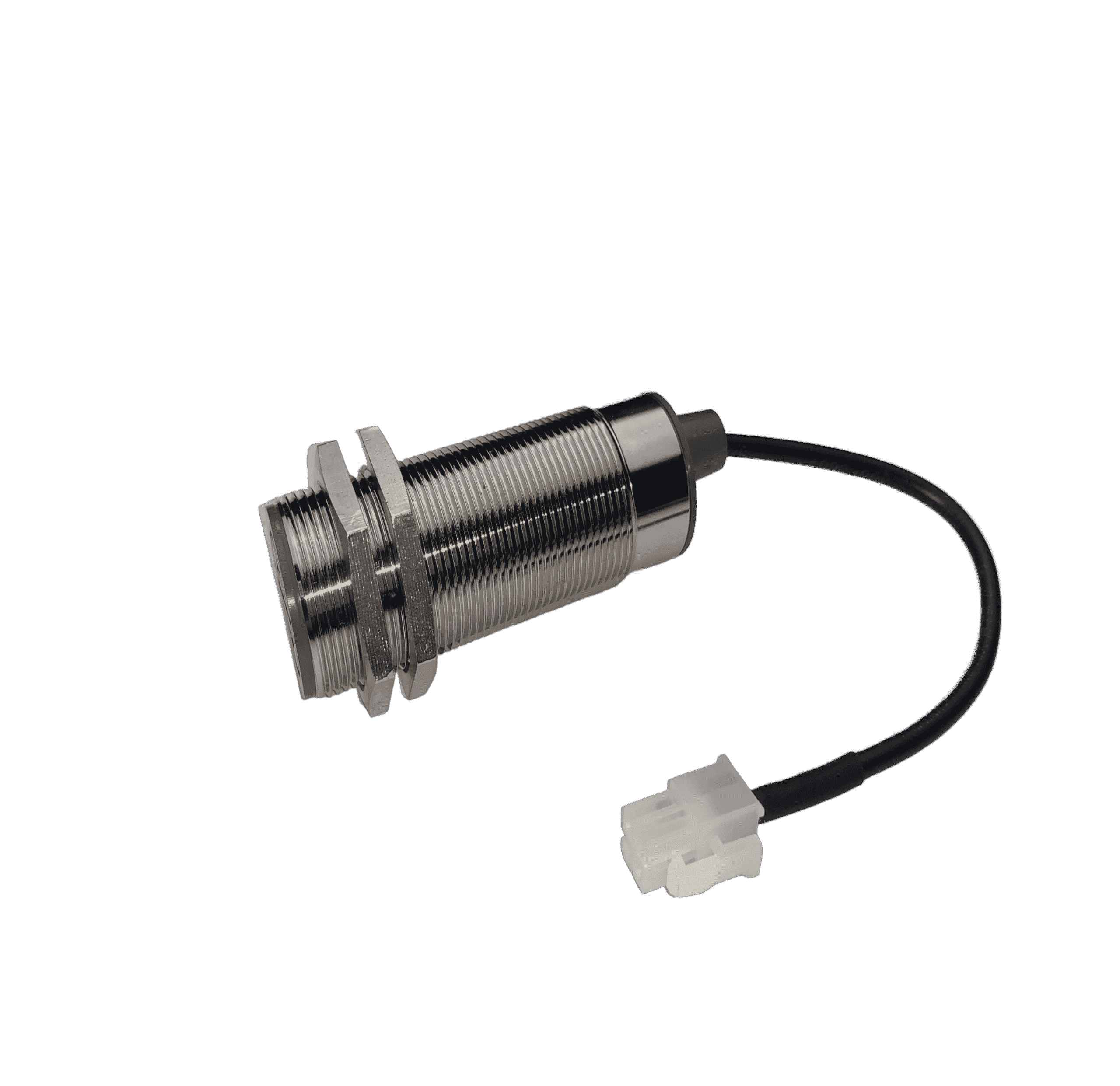

Inductive Analog Sensor for Precise Distance Measurement – IAS-I-M30SV10

---

Technical Specifications

Pictures

---

Key Features

✅ High-Linearity Output
12-bit resolution analog signals (0-10V/4-20mA) with ±0.3% FS nonlinearity for precise metal distance/thickness measurement.

✅ Temperature-Compensated Stability
Automatic drift correction across -40°C to +125°C maintains ±0.1%/°C accuracy in thermal cycling environments.

✅ Multi-Layer Shielding
Triple EMI shielding (60dB attenuation) prevents interference from VFDs/welding equipment (EN 61000-6-2 compliant).

✅ Wide Sensing Ranges
Configurable detection from 0.5mm to 40mm (ferrous) / 0.2-15mm (non-ferrous) with 10μm repeatability.

✅ Industrial-Grade Durability
IP67-rated stainless steel housing withstands 50g mechanical shocks and 15kV ESD pulses (IEC 60068-2 standards).

✅ Smart Calibration
Teach-in function via pushbutton/IO-Link interface for rapid field setup and parameter adjustment.

---

Application Scenarios

🟡 Precision Machining

• CNC spindle tool wear compensation
• Metal stamping die alignment verification
• Bearing raceway groove depth inspection

🟡 Automotive Manufacturing

• Brake pad thickness monitoring
• Engine block bolt protrusion measurement
• EV battery busbar flatness detection

🟡 Steel Industry

• Hot-rolled strip thickness profiling
• Continuous casting mold gap control
• Coil winding tension roller position

🟡 Aerospace Assembly

• Turbine blade root slot dimension check
• Aircraft wing rivet flushness measurement
• Hydraulic actuator piston position feedback

🟡 Railway Maintenance

• Wheel flange wear pattern analysis
• Track fastener height differential monitoring
• Pantograph carbon strip erosion detection

🟡 Packaging Systems

• Can seaming roller pressure adjustment
• Foil lid application gap control
• Metallic ink printing registration sensing

🟡 Renewable Energy

• Wind turbine gear tooth engagement check
• Solar tracker structural deflection monitoring
• Wave energy piston corrosion thickness tracking

---

Your Concerns

Documents

Install Video

Description

The IAS-I-M30SV10 is an analog output inductive sensor designed for precise non-contact distance measurement. Ideal for automation, material handling, and robotic systems requiring continuous position feedback with high accuracy and reliability.

---

FAQ – Inductive Analog Sensor IAS-I-M30SV10

✅ What is the detection range and sensitivity of the IAS-I-M30SV10 inductive analog sensor?

The IAS-I-M30SV10 has a detection range of 0–15mm with a sensitivity of ≤1%, suitable for precise non-contact distance measurement.

✅ What types of signal output does the IAS-I-M30SV10 provide?

It provides multiple analog outputs: 0-5V, 5-0V, 0-10V, 10-0V, and 4-20mA for continuous distance feedback.

✅ How does the IAS-I-M30SV10 maintain accuracy under temperature variations?

It features automatic drift correction across -40°C to +125°C, maintaining ±0.1%/°C accuracy during thermal cycling.

✅ What protections are included for harsh industrial environments?

The sensor has IP67-rated stainless steel housing, triple EMI shielding, withstands 50g mechanical shocks, and 15kV ESD pulses.

✅ In which applications is the IAS-I-M30SV10 commonly used?

Applications include precision machining, automotive manufacturing, steel industry, aerospace assembly, railway maintenance, packaging systems, and renewable energy for precise distance and thickness monitoring.
