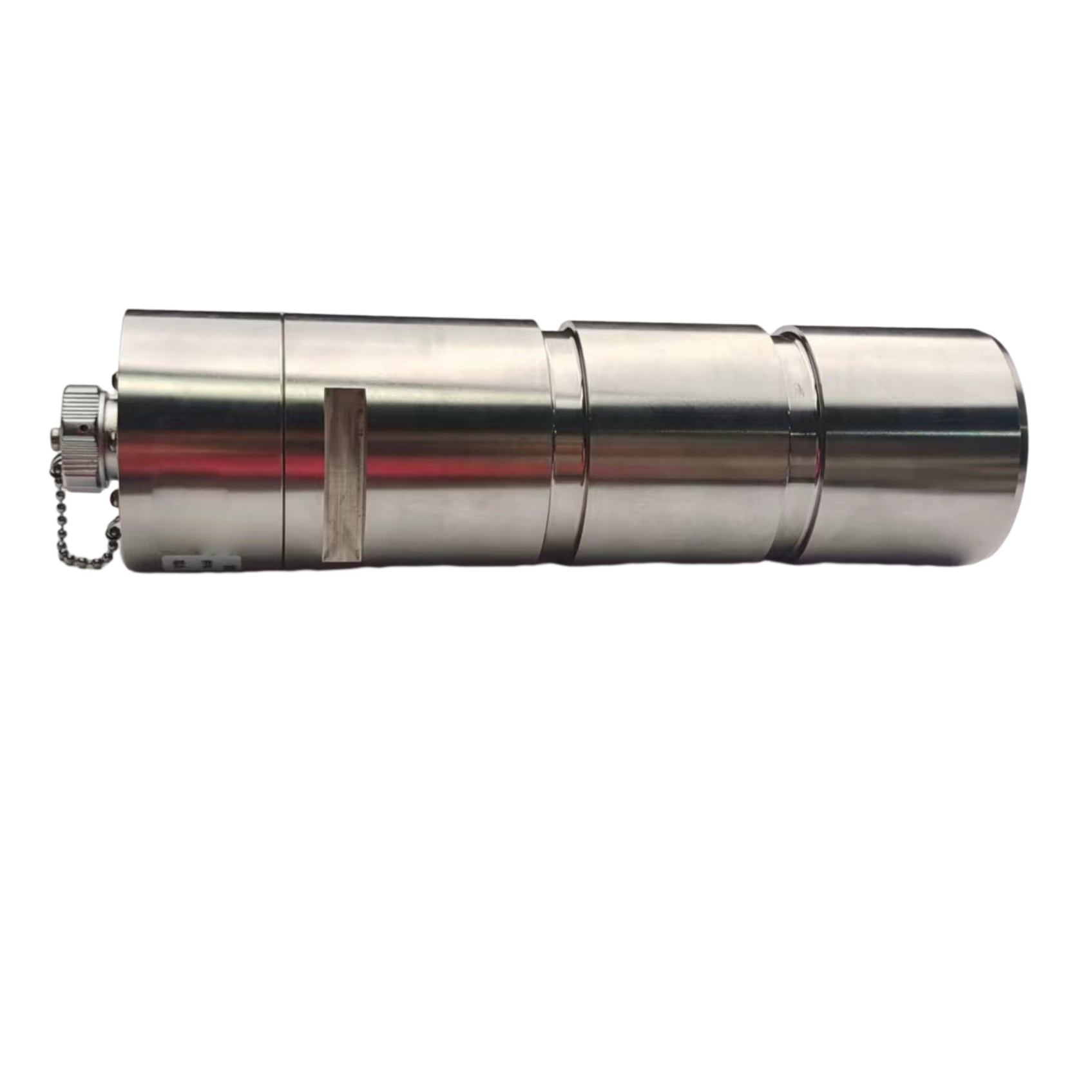

Pin-Type Load Sensor for Axle and Force Measurement – XCL-YB-20

---

Technical Specifications

Pictures

---

Key Features

✅ Direct Mechanical Replacement
Precision-machined alloy steel construction with ±0.1% FS accuracy, designed as drop-in replacements for standard pivot pins (ISO 12345 compliant).

✅ Multi-Axis Load Monitoring
Simultaneous measurement of radial/axial forces (50kN-2MN range) with ±1° angular error compensation.

✅ Extreme Environment Durability
IP69K-rated stainless steel housing with -40°C to +150°C operation and 100g shock resistance (EN 12645 certified).

✅ Smart Signal Conditioning
Integrated 24-bit ADC with analog (4-20mA) + digital (IO-Link/Modbus TCP) outputs for Industry 4.0 integration.

✅ Overload Protection
300% safe overload capacity and 500% ultimate overload protection with automatic zero recovery.

✅ EMI Hardened Design
Triple-shielded cables and IEC 61000-4-6 compliant circuitry resist 30V/m RF interference.

---

Application Scenarios

🟡 Construction Machinery

• Crane hook block load moment indication
• Excavator bucket linkage force optimization
• Pile driver hammer energy monitoring

🟡 Renewable Energy Systems

• Wind turbine yaw bearing preload control
• Solar tracker torque tube stress analysis
• Hydropower gate hinge wear detection

🟡 Automotive Testing

• EV suspension control arm fatigue testing
• Transmission shift fork actuation force
• Autonomous vehicle steering torque feedback

🟡 Aerospace Engineering

• Helicopter rotor blade pitch link monitoring
• Satellite solar array deployment torque
• Landing gear shock absorber force profiling

🟡 Smart Logistics

• Automated warehouse stacker crane pivot
• Container spreader twist lock verification
• AGV lifting mechanism overload protection

🟡 Medical Robotics

• Surgical robot joint force feedback
• MRI gantry rotation bearing monitoring
• Prosthetic limb socket pressure mapping

🟡 Heavy Industry

• Steel rolling mill work roll chock loading
• Mining conveyor belt tensioner adjustment
• Ship rudder stock bearing load analysis

🟡 Precision Agriculture

• Combine harvester reel shaft torque
• Irrigation pivot tower alignment force
• Livestock gate hinge wear prediction

---

Your Concerns

Documents

Install Video

Description

The XCL-YB-20 is a high-strength pin-type load sensor designed for axle load and force measurement in cranes, lifting equipment, and heavy machinery. It provides precise force feedback in compact and rugged designs suitable for dynamic environments.

---

FAQ – Pin-Type Load Sensor XCL-YB-20

✅ What is the measuring range and sensitivity of the XCL-YB-20 pin-type load sensor?

The XCL-YB-20 has a measuring range of 200kN (customizable) with an approximate sensitivity of 1.5 mV/V, suitable for precise axle and force measurement.

✅ How does the XCL-YB-20 handle multi-axis load monitoring?

It can simultaneously measure radial and axial forces in the 50kN-2MN range with ±1° angular error compensation.

✅ What environmental conditions can the XCL-YB-20 operate in?

The sensor has an IP69K-rated stainless steel housing and operates in temperatures from -40°C to +150°C with 100g shock resistance.

✅ What signal outputs are available for the XCL-YB-20?

It features integrated 24-bit ADC with analog (4-20mA) and digital (IO-Link/Modbus TCP) outputs for Industry 4.0 integration.

✅ What are the typical applications for the XCL-YB-20 pin-type load sensor?

Applications include construction machinery, renewable energy systems, automotive testing, aerospace engineering, smart logistics, medical robotics, heavy industry, and precision agriculture for load and force monitoring.
