Strain Gauge Load Sensor for Force Measurement – XCL-YL-C

---

Technical Specifications

Pictures

---

Key Features

✅ Micro-Strain Resolution
0.1με measurement sensitivity with ±0.01% FS linearity (ISO 4965 compliant) for precise structural deformation analysis.

✅ Multi-Axis Configuration
Simultaneous ε_x/ε_y/ε_z measurement with ±0.5° alignment tolerance (120Ω/350Ω bridge options).

✅ Advanced Compensation
Built-in MEMS-based temperature/humidity compensation (-40°C to +150°C, 0-100% RH) and transverse effect correction.

✅ Harsh Environment Protection
IP68-rated stainless steel package with 50g shock resistance and 15kV ESD protection (IEC 60068-2-27/64).

✅ Smart Signal Processing
24-bit ADC with analog (1.5mV/V) + digital (RS485/Bluetooth 5.2) outputs and 1000Hz sampling rate.

✅ Self-Diagnostic Capability
Automatic baseline drift correction and bridge imbalance alerts via Modbus RTU protocol.

---

Application Scenarios

🟡 Structural Health Monitoring

• Bridge bearing displacement under live loads
• Dam concrete crack propagation tracking
• High-rise building foundation settlement

🟡 Aerospace Testing

• Wing fatigue test strain mapping
• Landing gear impact force distribution
• Composite fuel tank pressure vessel stress

🟡 Automotive R&D

• EV battery pack cyclic expansion measurement
• Chassis torsional stiffness verification
• Crash test dummy anchor point strain

🟡 Medical Biomechanics

• Orthopedic implant osseointegration monitoring
• Rehabilitation exoskeleton joint torque
• Surgical instrument sterilization warpage

🟡 Energy Infrastructure

• Wind turbine blade root bending moment
• Pipeline weld integrity assessment
• Nuclear reactor vessel thermal strain

🟡 Smart Manufacturing

• Press tool die deflection compensation
• Robotic gripper finger tactile feedback
• 3D printer nozzle force calibration

🟡 Material Science

• Alloy creep behavior characterization
• Concrete curing stress evolution
• Nanocomposite tensile modulus testing

🟡 Geotechnical Engineering

• Tunnel lining convergence monitoring
• Landslide early warning system
• Oil well casing deformation analysis

---

Your Concerns

Documents

Install Video

Description

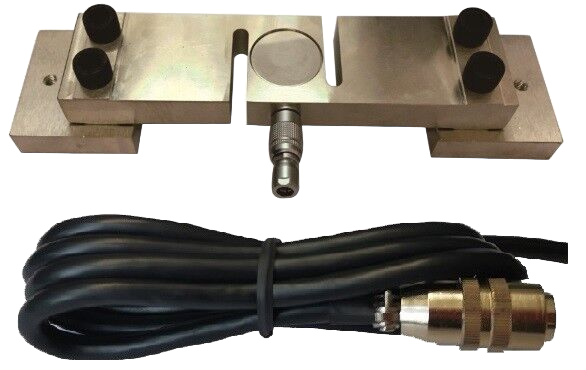

The XCL-YL-C is a high-accuracy strain gauge load sensor designed for precise force measurement in industrial environments. It offers stable performance under dynamic loads and is ideal for automation systems, mechanical testing, and structural monitoring.

---

FAQ – Strain Gauge Load Sensor XCL-YL-C

✅ What is the measurement range and accuracy of the XCL-YL-C strain gauge load sensor?

The XCL-YL-C features a strain range of 500 microstrain with 1% accuracy (depending on structural type), providing precise force measurement for industrial applications.

✅ How does the XCL-YL-C handle multi-axis measurements?

It supports simultaneous εx/εy/εz measurements with ±0.5° alignment tolerance and offers 120Ω/350Ω bridge options for versatile structural monitoring.

✅ What environmental protections and compensation features does the XCL-YL-C provide?

The sensor has IP68-rated stainless steel housing with 50g shock resistance, 15kV ESD protection, and built-in MEMS-based temperature/humidity compensation covering -40°C to +150°C and 0–100% RH.

✅ What output and signal processing options are available for the XCL-YL-C?

It features 24-bit ADC with analog (1.5mV/V) and digital outputs (RS485/Bluetooth 5.2) with 1000Hz sampling rate, plus self-diagnostic capabilities like baseline drift correction and bridge imbalance alerts.

✅ What are typical applications for the XCL-YL-C strain gauge load sensor?

Applications include structural health monitoring, aerospace testing, automotive R&D, medical biomechanics, energy infrastructure, smart manufacturing, material science, and geotechnical engineering.
